Foundation Sectional Replacement in Tracy, Ca

Tuesday, April 1st, 2025 by Mike Gray

Challenge

Project Overview

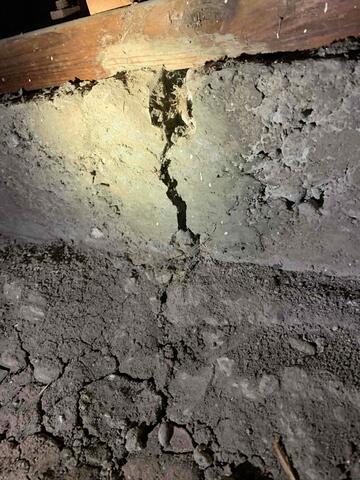

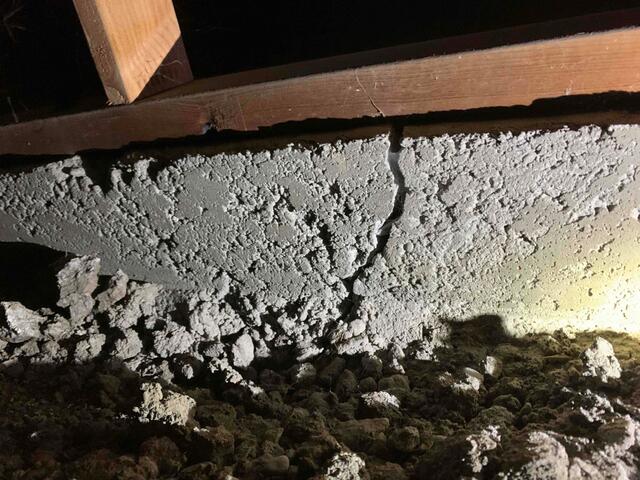

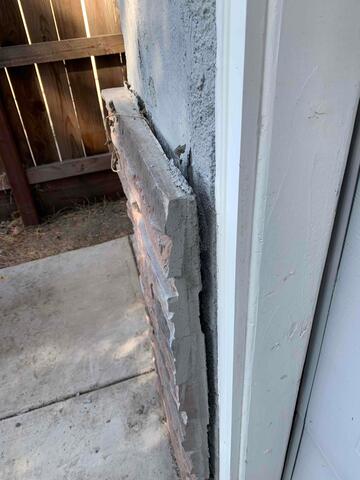

A homeowner in Tracy, CA, reached out to Foundation Repair of CA after noticing severe structural issues in their home. They experienced uneven floors, significant cracks in both the interior and exterior walls, and sections of the brickwork detaching from the home. Upon closer inspection, they also observed horizontal cracking and deterioration of major portions of the foundation stem wall. Concerned about the long-term stability and safety of their home, they sought professional help to diagnose and resolve the issue.

Solution

Assessment and Diagnosis

Foundation Repair of CA conducted a free, comprehensive evaluation of the home’s foundation, identifying extensive deterioration of the concrete and rebar within the stem wall. The damage was largely due to moisture intrusion, soil movement, and the natural aging of the materials, which led to the weakening of the structure.

The compromised foundation integrity resulted in visible cracking, shifting floors, and detaching brickwork.

After thoroughly assessing the underlying issues, our expert team provided the homeowner with an on-the-spot estimate and a detailed repair plan tailored to restore the foundation’s strength and stability.

Customized Repair Solution

To address the foundation’s deterioration and prevent further damage, we implemented the following strategic repairs:

1. Stem Wall Reinforcement and Crack Repair

Concrete Chipping & Rebar Replacement:

Chipped out the damaged concrete around cracks to remove old, deteriorated rebar.
Installed synthetic fiberglass rebar, which offers superior durability and resistance to corrosion compared to traditional steel rebar.

High-Strength Concrete Repair & Carbon Fiber Reinforcement:

Packed a high-strength concrete mix into the repaired areas and smoothed it to a clean finish.
Sealed the area with a carbon fiber patch system and epoxy, reinforcing the structural integrity and providing long-term durability.

2. Exterior Concrete Slab Modification

Trenching for Installation Access:

Saw-cut an exterior concrete slab trench (up to 6” wide) to allow for proper installation access.
After completing the repair, the trench was poured back with new concrete.

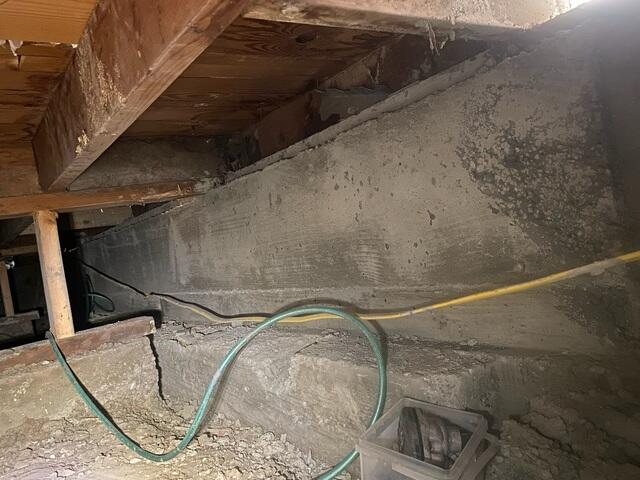

3. Perimeter Foundation Replacement

Targeted Foundation Reconstruction:

Removed and replaced damaged sections of the existing perimeter foundation, ensuring proper shoring and structural support.

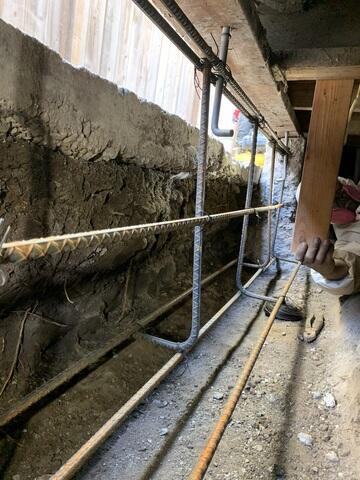

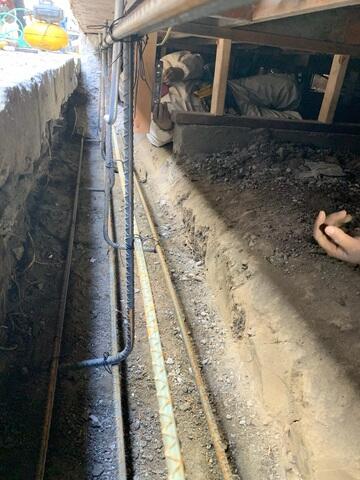

The replacement included demolition, off-haul of old concrete, excavation, forming, and rebar installation.
Installed new poured concrete matching the dimensions of 12” wide x 8” tall footing and 8” wide x 18” tall stem wall.
Added a new mudsill and anchor bolting system to reinforce the structural connection.

Results & Homeowner Satisfaction

Upon completion of the project, the homeowner’s foundation was fully stabilized and reinforced, significantly improving the structural integrity of the home. The following results were achieved:

Eliminated foundation cracking and further deterioration, preventing future structural damage.
Reinforced the foundation with modern, durable materials, including synthetic fiberglass rebar and carbon fiber reinforcement.
Restored the home’s stability, reducing floor unevenness and structural movement.
Enhanced the overall safety and longevity of the home, giving the homeowner peace of mind.
